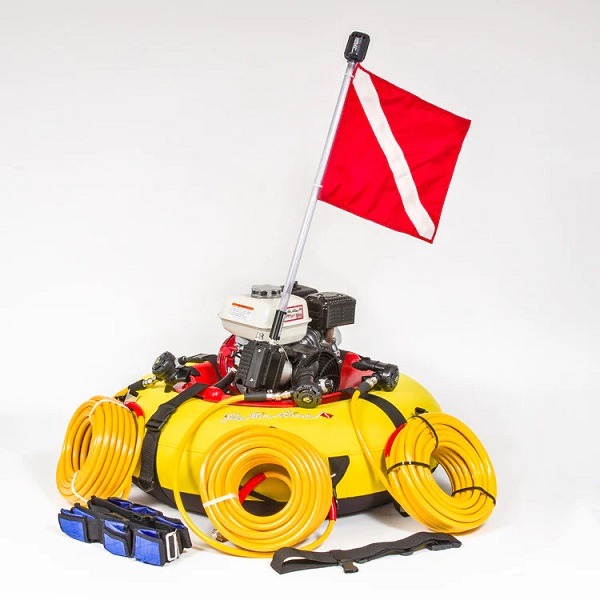

Air Line R360XL Gas Engine Hookah System
Exactly the same as R260XL, but as a three diver package.
Because of the exceptional performance of the XL compressor, it is extremely well qualified to support the third, and even, fourth diver at respectable recreational depths. It is shown as a separate entity to eliminate confusion in determining requirements for depth and number of participants.
What you’ve read above about Model R260XL also applies here. Worth repeating is the uniqueness of this large, single-head compressor: the full marinization inside and out; the vented cover; the six inch cooling fan; the ability to rinse out internally with no disassembly; that it can be serviced by you—in the field.
Air Line is fantastic with its parts / Components like commercial grade Honda engines in gas-powered systems, proprietary models of Thomas Industries compressors, solid brass nickel plated hose fittings (no plastic fittings here), and Omniswivel regulator swivel fittings that no other competitor uses.
- 4.0 HP, 4 cycle, OHV, Honda engine.
- Performance: 2 to depth of 85′, 3 to 60′, 4 to 40.
- Compressor: Thomas/Air Line, LARGE, single-head, direct-drive, oil-free, Wobble piston.
- Performance: 12.5 CFM @ 0 PSI, 9.8 @ 50. Two at 85′, three at 60, four at 40.
- Air Rating: Standard-E Compressed Gas Association of America.
- Full-time operating speed, compressor and motor: 3,400 RPM.
- Motor: Honda, 4 hp, 4 cycle.
- Operating time: 3 hours. (Watch your decomp. time) on 2 1/2 qts. of gas.
- Size in Polypropylene Case: 19 1/2 x 25 x 17 inches high.
- Inflated Float Size: 38 inches. (Stable up to four foot seas. Use Also as deck-mount on pan.)
- Warranty: Global, one year on compressor by Thomas; two-year on motor by Honda; one year on all other parts.
- Weight: 55lbs.
The Standard gear Package:

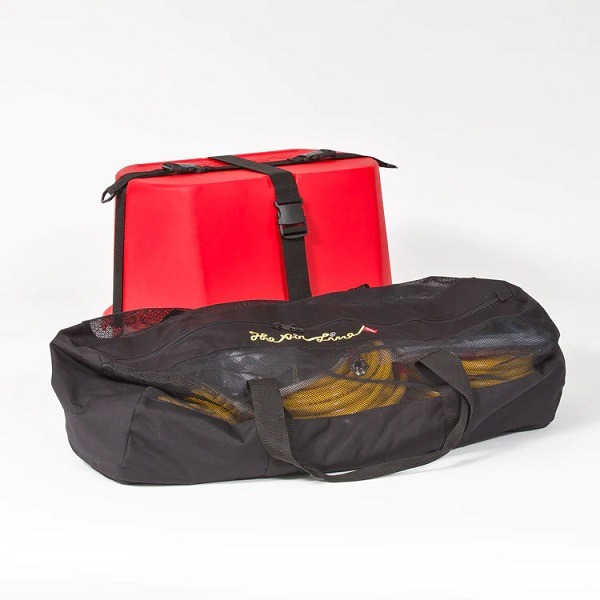

|1||Polypropylene storage case|
|1||5′ US Navy heat hose|
|1||Agricultural-grade inner tube|
|1||1,000 denier, U/V stabilized Cordura float cover|
|3||60′ fully swiveled, individual diver hoses|
|6||Washable, stainless-steel particle filters|
|3||Adjustable, hookah-specific, 2nd stage regulator w/fully rotational, 360¡ swivel|
|1||Air intake staff and filter|
|1||Down diver flag|
|1||Owners manual (Honda and Air Line/Thomas)|
You can add a fourth diver with Addit60 package from Hookah Accessories page.
Can be ordered as a two diver package, Model R260XL.
